MicroCloud (LXD) Plugin

Coriolis integrates the platform Plugin on the Appliance itself, this way there is no need for agents to be deployed on platforms to establish the communication between the platform and the Coriolis components.
Coriolis guarantees the connection to the supported platform set up to be used as a Destination, as long as the requirements are met.

MicroCloud destination cloud

For detailed information regarding MicroCloud capabilities and performed steps while using it as a destination cloud, please check the following page:

MicroCloud (LXD) as a Destination Cloud

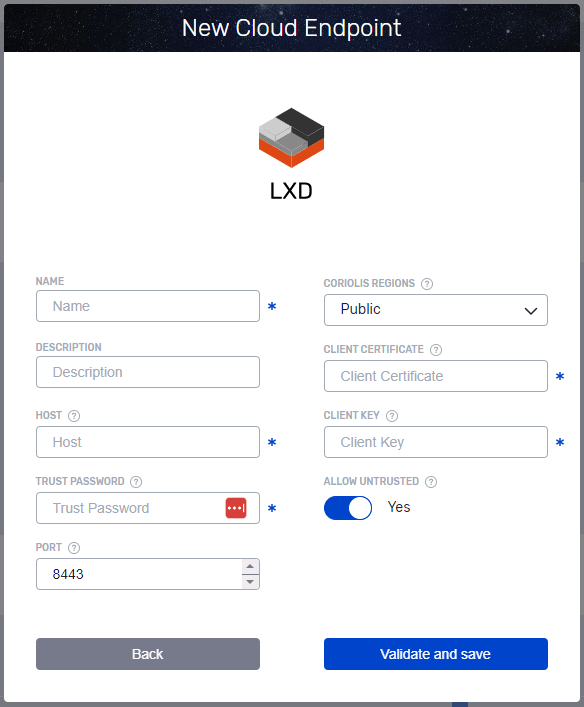

LXD Endpoint Connection Parameters

In order to connect to LXD to perform migration to it, the following connection parameters are required:

LXD endpoint setup

The LXD Coriolis endpoint uses the client key pairs, which can be generated using openssl. Coriolis uses the LXD trust password to authenticate the client keypair and can allow self-signed certificates too.

LXD keypair generation

Run the command below to generate a new keypair:

1	openssl req -x509 -newkey rsa:2048 -keyout lxd_coriolis.key -nodes -out lxd_coriolis.crt -subj "/CN=lxd.local" -days +3650

Add the certificate to be trusted in LXD:

1	lxc config trust add lxd_coriolis.crt

Endpoint authentication

After generating the client keypair, input it into the Coriolis Endpoint in base64 format.

1	base64 -w0 lxd_coriolis.crt<br>base64 -w0 lxd_coriolis.key

LXD platform specifics

Supported Actions:	Migration Destination – Replica Destination	Comments
Plugin identifier	lxd	Identifies the plugin. Used for the –provider CLI parameter
Credentials needed	Client certificate, trust password	Necessary credentials to give to Coriolis.
Deployment requirements	Coriolis worker component(s) need network access to the LXD APIs.	Coriolis deployment and environment connectivity requirements
DRaaS source requirements	LXD is not currently supported as a DRaaS source	Requirements to use the replica export (DRaaS source) features
Instance identification scheme	Names must be unique	How instances to migrate/replicate are identified on a source cloud handled by this plugin
Network identification scheme	Names of VM Networks	How the plugin identifies networks. Required for the network_map field of the –destination-environment

Example of connection info JSON to be passed to the LXD plugin

1 2 3 4 5 6 7 8	{ "host": "10.8.1.227", "trust_password": "S3kret", "port": 8443, "client_certificate": "LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURDVENDQWZHZ0F3SUJBZ0lVQWZQejU0cnJLSzQydlhDQnJOemdaMnh4Q0lFd0RRWUpLb1pJa...", "client_key": "LS0tLS1CRUdJTiBQUklWQVRFIEtFWS0tLS0JSUV2UUlCQURBTkJna3Foa2lHOXcwQkFRRUZBQVNDQktjd2dnU2pBZ0VBQW9JQkFRQ2s4UDRXWVI1a0tjOHAKOTRQRUZMN0dQcUwvc3...", "allow_untrusted": true }

Each parameter represents:

• host (string) – The MicroCloud/LXD hostname
• trust_password (string) – MicroCloud/LXD instance’s trust password, used for authenticating new client key pairs
• port (integer) – The port number for accessing MicroCloud/LXD
• client_certifiate (string) – Base64-encoded contents of the LXD client certificate
• client_key (string) – Base64-encoded contents of the LXD client key
• allow_untrusted (boolean) – Trust self-signed HTTPS certificates
