KubeVirt & Harvester Plugin

Coriolis provides agentless integration with supported virtualization platforms by running the platform plugin directly on the Coriolis Appliance. This architecture eliminates the need to deploy agents on source or destination platforms and simplifies connectivity and setup.

Coriolis has been validated for Harvester environments from version 1.3 through 1.8.0. This compatibility also extends to SUSE Virtualization, which is based on the same underlying platform capabilities.

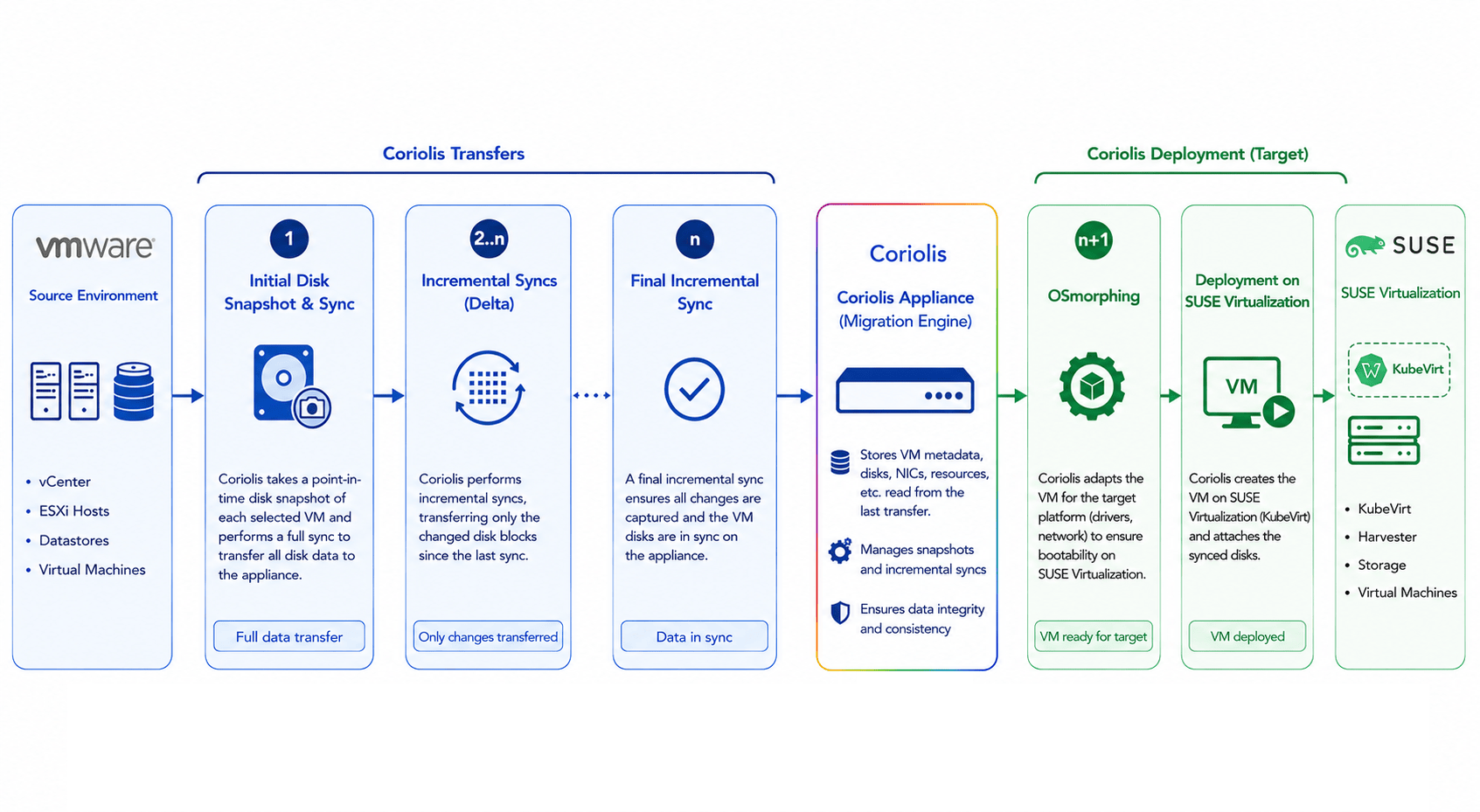

For a VMware to SUSE Virtualization migration, here is a representation of the steps involved:

KubeVirt destination cloud

For detailed information regarding KubeVirt/Harvester capabilities and steps performed while using it as a destination cloud, please check the following page:

KubeVirt/Harvester as a destination cloud

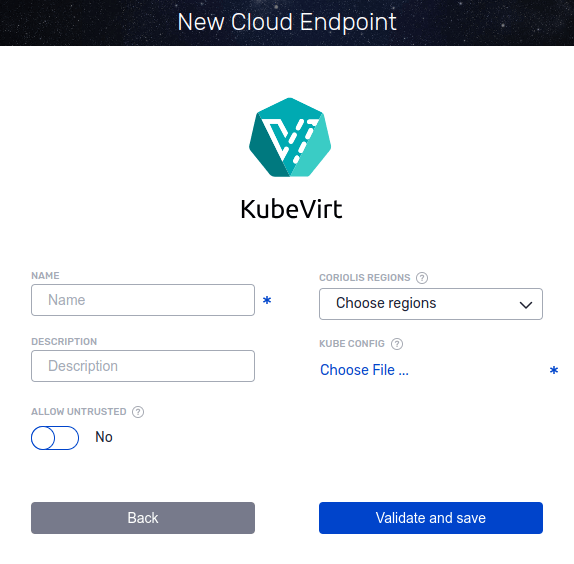

KubeVirt Endpoint Connection Parameters

To connect to Kubevirt to perform migration to it, the following connection parameters are required:

A valid kubeconfig YAML needs to be passed to the Coriolis endpoint. In a traditional KubeVirt setup, the kubeconfig can be found at the ~/.kube/config location in your environment.

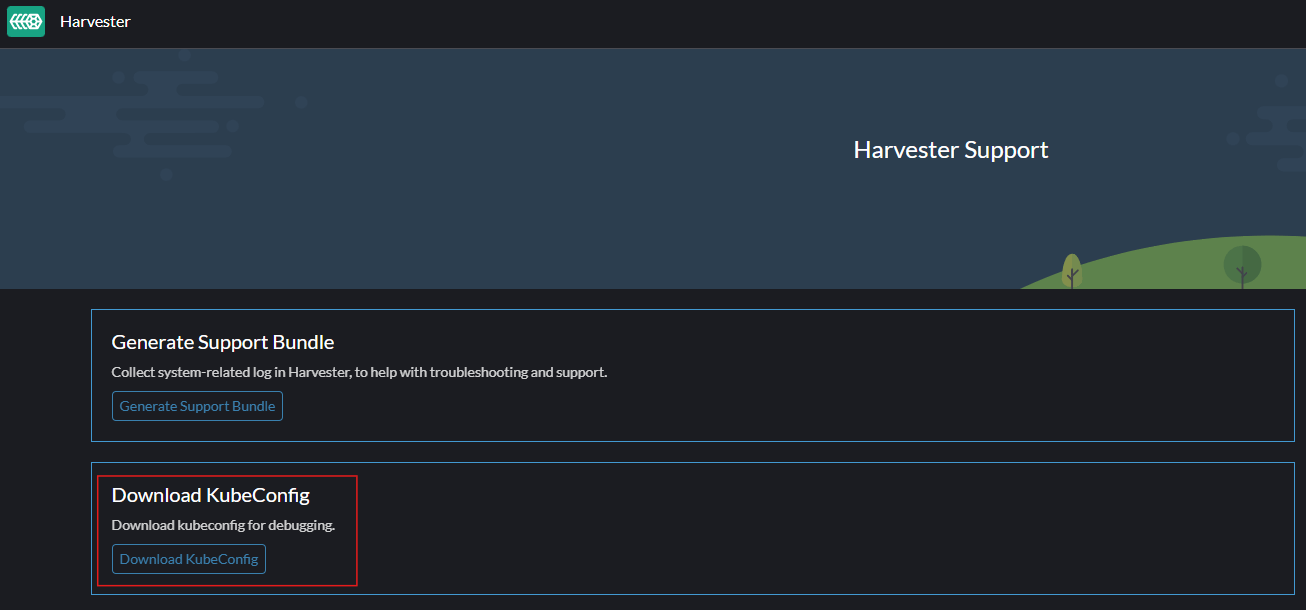

If using Harvester, a kubeconfig can be generated for the logged-in user by accessing the Harvester UI’s Support page and clicking Download KubeConfig, as shown below.

KubeVirt platform specifics

Supported Actions:	Migration Destination – Replica Destination	Comments
Plugin identifier	kubevirt	Identifies the plugin Used for the –provider CLI parameter
Credentials needed	kubeconfig that mentions either user TLS certificates or generated token	Necessary credentials to give to Coriolis
Deployment requirements	Coriolis worker component(s) need network access to the Kubernetes and KubeVirt APIs	Coriolis deployment and environment connectivity requirements
DRaaS source requirements	Kubevirt is not currently supported as a DRaaS source	Requirements to use the replica export (DRaaS source) features
Instance identification scheme	Names must be unique	How instances to migrate/replicate are identified on a cloud handled by the plugin
Network identification scheme	Names of VM Networks	How the plugin identifies networks. Required for the network_map field of the –destination-environment

KubeVirt migration user required permissions

This table will describe the minimum role requirements of a migration user to bind to migrate instances to a destination KubeVirt platform:

Role Type	Resource	Access Level	API Group
Cluster	virtualmachineimages	Read	harvesterhci.io
	volumesnapshotclasses	Read	snapshot.storage.k8s.io
	storageclasses	Read	storage.k8s.io
	namespaces	Read
	network-attachment-definitions	Read	k8s.cni.cncf.io
	customresourcedefinitions	Read	apiextensions.k8s.io
Namespace	persistentvolumeclaims	Read/Write
	pods	Read/Write
	virtualmachineinstances	Read/Write	kubevirt.io
	volumesnapshots	Read/Write	apiextensions.k8s.io
	volumesnapshots/status	Read	apiextensions.k8s.io
	virtualmachines	Read/Write	kubevirt.io
	virtualmachines/start	Read/Write	subresources.kubevirt.io
